The Simple Network Management Protocol (SNMP), widely used by network administrators, is a fundamental component of network management suites. It provides a standardized method for monitoring network-attached devices and identifying potential issues requiring attention. SNMP defines a set of standards for network management, including data object sets, a database schema, and an application layer protocol.
SNMP facilitates the exposure of management data on managed devices through variables. These variables describe the system’s configuration and can be queried (and sometimes modified) by network management applications.
Components of an SNMP-Managed Network:
- Managed Devices (Network Elements): These are network nodes equipped with an SNMP agent. They reside on managed networks and collect and store management information. This information is then made accessible to Network Management Systems (NMS) via SNMP. Examples of managed devices include switches, bridges, routers, access servers, printers, IP phones, computer hosts, and hubs.
- Agents: Software residing on managed devices, agents act as network management translators. They possess local knowledge of management information and convert it into a format compatible with SNMP.

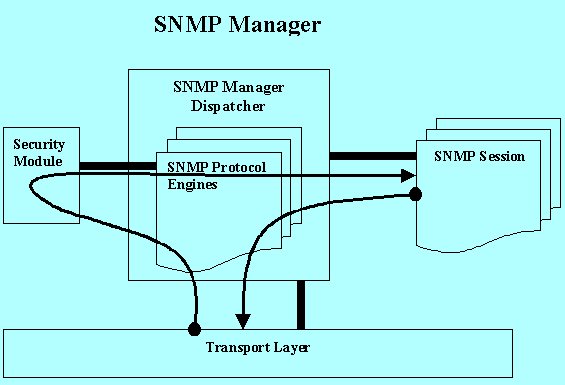

- Network Management Systems (NMS): These systems run applications that monitor and control managed devices. NMS provide the processing power and memory resources necessary for network management. A managed network can have one or multiple NMS.
SNMP Versions:
SNMP has evolved through three main versions:
- SNMPv1: The original version, SNMPv1 works with various protocols like UDP (User Datagram Protocol), Connectionless Network Service (CLNS) of the OSI model, Novell IPX (Internet Packet Exchange), TCP/IP (Transmission Control Protocol/Internet Protocol), and AppleTalk Datagram-Delivery Protocol (DDP). While popular, SNMPv1 lacks robust security features. Due to its inherent lack of security, SNMPv1 is no longer recommended for use in modern networks.
- SNMPv2c: A revision of SNMPv1, version 2c offers improvements in security, confidentiality, manager-to-manager communication, and performance. It also introduces the GETBULK operation for efficient retrieval of large amounts of management data. However, SNMPv2c, like SNMPv1, still has vulnerabilities and is not considered entirely secure.
- SNMPv3: The latest standard version, SNMPv3 provides enhanced security features including privacy, access control, and authentication. While SNMPv1 and SNMPv2c share compatible protocol operations and message formats, messages in SNMPv2 use different Protocol Data Unit (PDU) and header structures compared to SNMPv1. Additionally, SNMPv2 introduces two protocol operations not found in version 1.
By leveraging SNMP, network administrators gain valuable insights into the health and performance of their networks. SNMP enables proactive troubleshooting and ensures optimal network operation. SNMP facilitates the collection of a wide range of data from network devices, including:
- Device status (up or down)
- Interface statistics (errors, discards, traffic)
- Memory usage
- CPU utilization
- Environmental conditions (temperature, humidity)
This information allows network administrators to identify potential problems before they become critical, reducing downtime and ensuring network efficiency. SNMP also plays a vital role in network automation. By automating routine SNMP queries, network administrators can free up time for more strategic tasks.
In conclusion, SNMP is a mature and widely used protocol that provides a foundation for network monitoring and management. While the original versions (SNMPv1 and SNMPv2c) have security weaknesses, SNMPv3 offers robust security features making it suitable for use in modern networks. As networks continue to grow in complexity, SNMP remains a valuable tool for network administrators seeking to maintain efficient and reliable network operation.
